Leading-edge
products Sustainable future society through SW Chemicals’ environmentally-friendly technologies!
We will make it possible through customized nanodiamond products and services with world-best quality.


콘텐츠

Nanodiamond Products

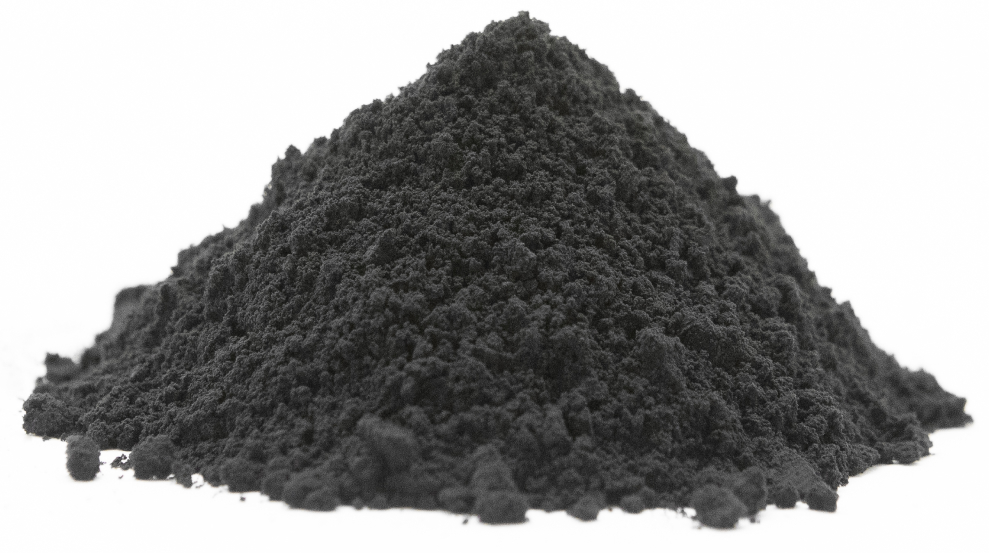

  • Nanodiamond soots

    After detonation of explosives (typically, mixture of TNT and RDX) in a closed chamber, soot can be obtained. This soot may contain impurities such as graphite or amorphous carbon (ca. 25~85 wt%) and metal impurities (ca. 1~10 wt%).

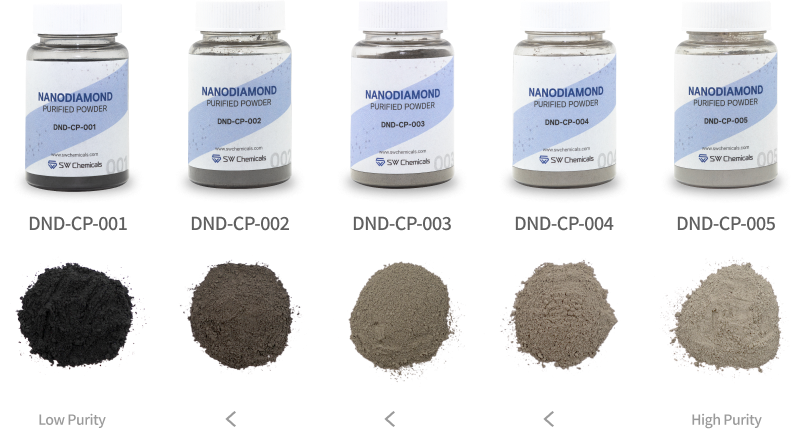

  • Nanodiamond purified powders

    SWC provides 5 grades of DND powders by finely controlling the content ratios of diamond and impurities (graphite, amorphous carbon and metals) using SWC’s patented prification process.

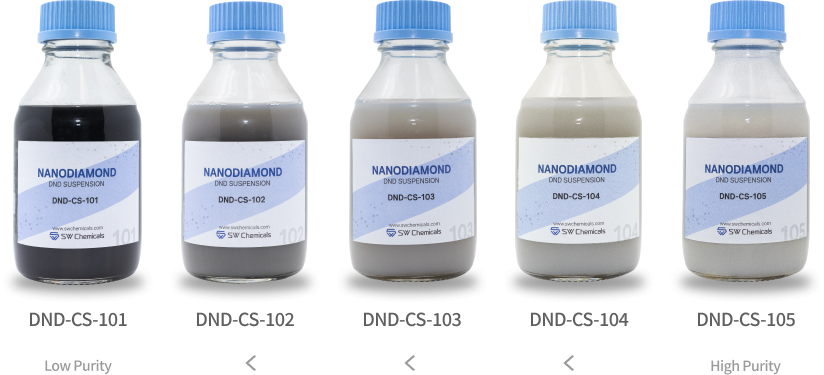

  • Nanodiamond suspensions

    SWC produces customized DND suspensions in various solvents such as water, alcohol, etc. in order to satisfy the customers’ needs.

    Solvent Diamond content Particle size distribution (D50) Application
    DI-water 1~5 wt% 25nm, 50nm Polishing (abrasive)
    Electroplating
    Coolants
    CVD seeding
    Polymer coatings
    Polymer thermal compounds
    Medical and biological applications
    Mineral oil
    PAO
    1~5 wt% 25nm, 50nm Lubricant
    Engine oil additive
    Cutting oil
    Grease
    Hexane 1~5 wt% 25nm, 50nm Polymer coatings
    Polymer thermal compounds
    Ethylene glycol 1~5 wt% 25nm, 50nm Polishing (abrasive)
    Polymer coatings
    Polymer thermal compounds
    PGMEA
    PGME
    MEK
    DMSO
    1~5 wt% 25nm, 50nm Polymer coatings
    Polymer thermal compounds
  • Polycrystalline diamond

    Shock-wave polycrystalline diamonds refer to diamonds that are formed under the instantaneous high temperature and pressure generated during the detonation of explosives, characterized by nanoscale crystal boundaries and particle sizes ranging from 0.5 to 10 μm.
